Feature

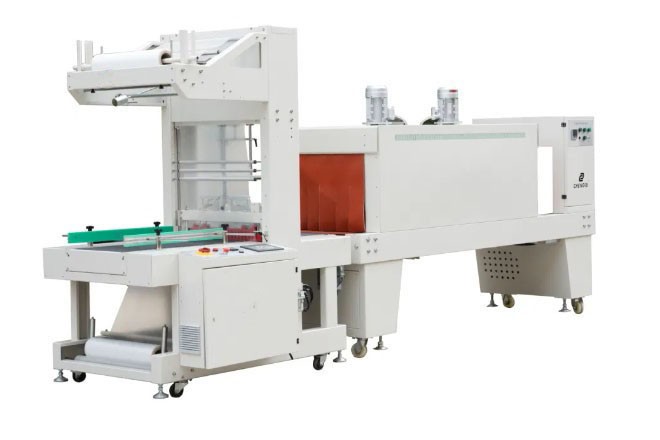

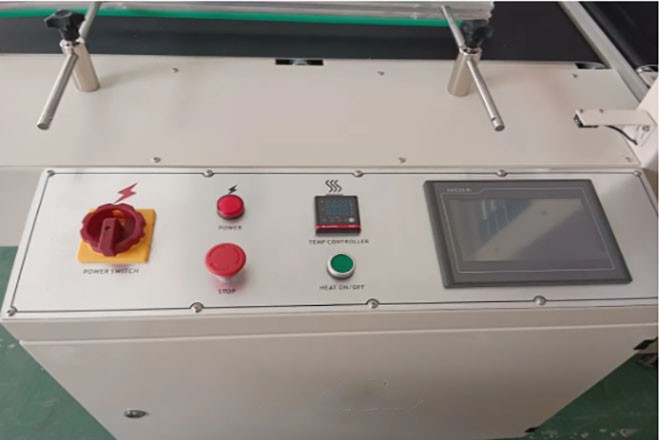

JWH-10 heat shrink wrapping machine for whole box of large objects,Using Panasonic PLC programmable controller and MCGS 7-inch human-machine interface, the operation is simple and can be connected to the production line to achieve unmanned operation.
Often used in the packaging of large boxes such as beverages and daily chemicals.
Corresponding specifications can be customized according to the product.
Parameters
| Model | JWH-10 |
| Power Supply | AC 380V 3PH 50/60Hz |
| Power | 1.8KW |
| Max. Packing Size | (W)≤450mm;(H)≤380mm |
| Sealing Size | (W)650mm |
| Table Height | 800mm |
| Packing Speed | 10-15pcs/min(Decide on product size) |
| Air Source | 6kgf/cm2 |
| Shrink Film | PE |
| Film Size | (W)≤550mm;(D)≤250mm;(G)≤35KG |
| Sealing Type | Sleeve type |
| Machine Size | L1700×W1100×H2030mm |
| Package size | L1830×W1220×H2200mm |
| G./N. Weight | 450kg |
